Respirator N95 Face Mask Four Side Seal Packing Machine

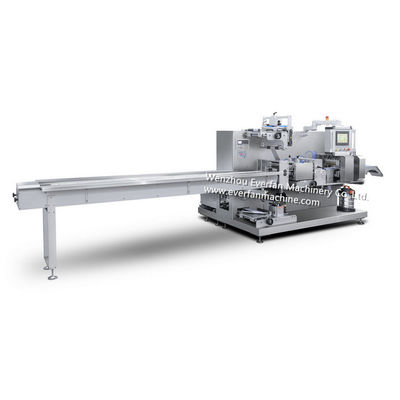

Large Image : Respirator N95 Face Mask Four Side Seal Packing Machine

Product Details:

Place of Origin:	China
Brand Name:	DH
Certification:	CE
Model Number:	HD-S450

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Generally machine packed with polythene film,if customer required wooden packaging then it charges will be extra
Delivery Time:	25-30 days
Payment Terms:	T/T
Supply Ability:	20 sets/month

Contact Now

Respirator N95 Face Mask Four Side Seal Packing Machine

Description

Application:	Face Mask,capsicum Plaster,cooling Gel Patch,menstrual Cramp Relief Patch,motion Sickness Patch,diarrhea Patch,nasal Strips,steam Eye Mask	Style:	Horizontal 4 Side Seal
Material:	Stainless Steel	Production Capacity:	30-120 Packets/min(according To Products)

Respirator N95 Face Mask Four Side Seal Packing Machine

This Respirator N95 Face Mask Four Side Seal Packing Machine can pack 3D cup mask, fish mask, medical flat mask in 4 side seal package, with euro hanging hole, it also can pack other flat solid products such as medical strips- medical plaster, pain relief patches, cooling sheet, mosquito repellent patches, cannula fixator etc.

Tension of material is controlled automatically and mechanically.
It can be adjusted by hand-wheel when positioning of product needs to be corrected.
Plaster can be packed for one single piece or a number of pieces.
Suitable for use on one single roll of packing paper for positioning the correct printing both on front and back side of the packing paper to fit in with each other.
Process of packing plus edge cutting can highly elevate the quality of finished product after packing.
Positioned cutting can be done by detecting the printing mark on packing paper sensed by photoelectric.
Machine will automatically stop as soon as running out of material is detected by auto sensor and the machine will warning when there is no product.(optional)
Machine designed in horizontal position to facilitate the operating for production. It is easy to change for making different specification of products and so is it to do the regular maintenance.

Model	GSB-220
Production capacity	30-120 packets/min(according to products)
Packing size	L 60-220mm, W 60-180mm, H 1-10mm
Compressed air	≥0.1m³/min
Power Supply	AC380V 50Hz (three phase)
Total power	7KW
Weight	1200kg
Overall dimensions	Length x width x height 5000x2020x1630 mm
