Product Details:
|
| Weight: | 2350KG | Power: | 7kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Free Spare Parts | Usage: | PVC Welding |
| Welding Area: | 450mm*500mm (hf Welding Machine) | Warranty: | 1 Year |
| Product Name: | High Frequency Welding Machine | Certification: | ISO9001 |
| Oscillation Tube: | 7T85RB | Application: | PVC |
| Welding Time: | 0-10s |
|

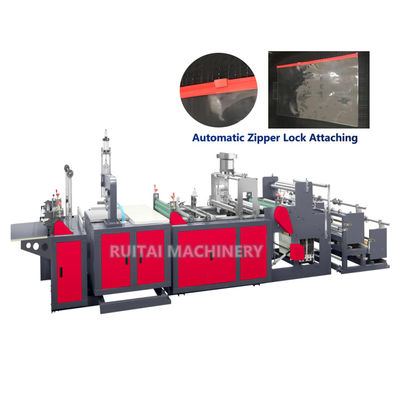

Automatic High Frequency PVC Zipper Bag Making Machine |
|
|
Feature
This machine is specially designed and manufactured for slider PVC zipper bag, with automatic process for PVC bag making
at one time online on one machine, wide application with PVC bag, such as in packing of garments&cosmetic industries etc
Highlight:
1. With auto sensor checking system.
2.With auto Spark protecting system
3. With automatic Zipper attaching system
4. With automatic slider attaching system.
5. With double EPC control system
6. With Automatic tension control system.
7. With three ultrasonic welding system
8. PLC control with touch screen
Main Technical
| Model | RT-D5 |
| High Frequency Output | 5kw |
| Oscillation Frequency | 27.12MHZ |
| Power Voltage | 3 Phase 380v |
| Max input | 6kva |
| Oscillation tube | 7T85R8 |
| Rectifier Tube | HVP20 |
| Down Electrode polar size | 650x600mm |
| Max. Mold Size | 450x500mm |
| Speed | 20-65 pieces/min |
| PVC thickness | 0.03-0.27mm |
| Machine weight | 1500kg |
| Machine size | 6900 x 1400 x 2000mm |
