Product Details:
|
| Voltage: | 380V,60Hz | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Packaging Type: | Cartons |
| Packaging Material: | Plastic | Driven Type: | Electric |
| Dimension(l*w*h): | 6800 X 4200 X 1800mm | Type: | Extrusion Machine |
| Application: | Machinery &Hardware | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support |
| Power: | 5.5KW | Packing Speed: | 20-60m/min |
| Warranty: | 1 Year | Material: | SS304 |

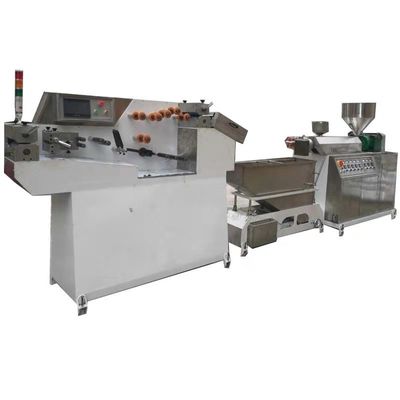

| Name: | Automatic PE Zipper Extrusion Machine |
Use:
This machine is suitable for PE zipper strip widely used for packing bag sealing and jointing of food, clothes and textile industrial products.
1. The extruder’s screw and screw barrel adopt special treatment, with the best hardness and corrosion resistance
2. This machine can change the mould very easily for different zipper strip production.
3. The raw material is extruded from the mould, though the thermostat cooling batch, dehydration device, air drying device, zipper strip close device, automatically meter/width/quantity counting, automatic winding device. into the finished product with high quality.
4. This machine’s mould with flexible, easy loading and unloading feature, easy to operate.
Main Configuration of the Machine
| Motor | Main motor | 5.5KW(Kuayao brand, made in Shanghai) |
| Auxiliary machine | 0.4kw | |
| Gear Reducer |
Speed Ratio:10:1, Guomao Brand, made in jiangshu |
|
| Inverter | Main motor | 5.5kw |
| Auxiliary machine | 1.5kw | |
| Screw | Made in Zhoushan | |
| Temperature controller | Zhineng Brand, made in Jiangshu | |
| Others | Made in China | |
Main Technical Variable
| Model | RT-45 |
| Screw diameter | 45mm |
| Screw L/D | 30:1 |
| Main motor | 5.5KW |
| Auxiliary machine power | 1.5KW |
| Heating power | 7KW |
| Total Power | 15KW |
| Over size | 6800 x 4200 x 1800mm |
| Power | 50HZ-60HZ 380v |
| Suitable material | LDPE/PP/EVA/PVC |
| Extruding speed | 20-60m/min |
| Extruding width | 3-100mm |
| Zipper strip thickness | 0.1-0.3mm |
