Product Details:
|
| Type: | Packing Machine,forming | Application: | Medical,Commodity,Chemical,Food |
|---|---|---|---|
| Packaging Type: | Bags | Automatic Grade: | Automatic |
| Condition: | New | Voltage: | 380V/220V |
| Applications: | Food,Chemical,Industry,Pharmaceutical |

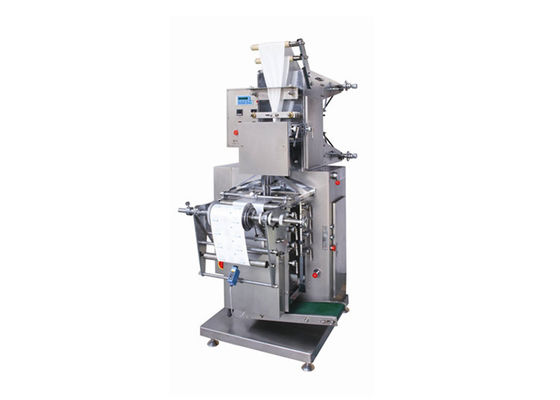

| GSB-128Y Vertical Type Wet Wipe Making Machine | |
 | |
| This machine is vertical type for packing wet wipe, alcohol prep pad and swab, disinfect cloth, etc. fully automatic. And it is used to produce wet wipe of 4-side sealed bag single piece. It can do the work of folding, cutting, bag-forming, Liquid-adding, slicing, code-printing, opening mouth making, counting, and output etc. |
| 1. Adopt PLC control system, imported frequency transducer, adjustable speed and bag sizes in a range according to the customer’s request. 2. It is four-side sealing machine with a particular bag forming system. 3. Double orientation systems of photoelectricity sensor. 4. Fully stainless steel frame. |
| Size of wet wipe | L 80-220mm W 60-200mm |
| Wipe plying mode | Maximum 8 longitudinal plies 4 cross plies |
| Size of bag | L45-150mm W 50-110mm |
| Capacity of production | 50-90 bags/min |
| Total power | 220v 50Hz 2.6 KW |
| Total weight | 800Kg |
| Size of machine | L900 x W1400 x 2040 mm |
